To learn what a capture path is read Planning a 360 Capture Path for Best Results.

The examples below show actual effective 360 capture paths for various projects in building construction, retail, petrochemical, power, tunnels and manufacturing. Each example details the following aspects:

• Use Case: As-built reality modeling for facility assessment, inspection, quality control, or progress monitoring.
• Method: 360 Hyperlapse or full-length video for capturing.
• Area of Capture: The total area or specific zones targeted for capture.
• Number of Captures: The total number of individual captures taken.
• Number of Images: Number of 360 image produced.
• Average Capture Rate: The average rate in ft2/min.

A structured approach helps in planning and executing capture paths that meet project requirements for thorough documentation and analysis.

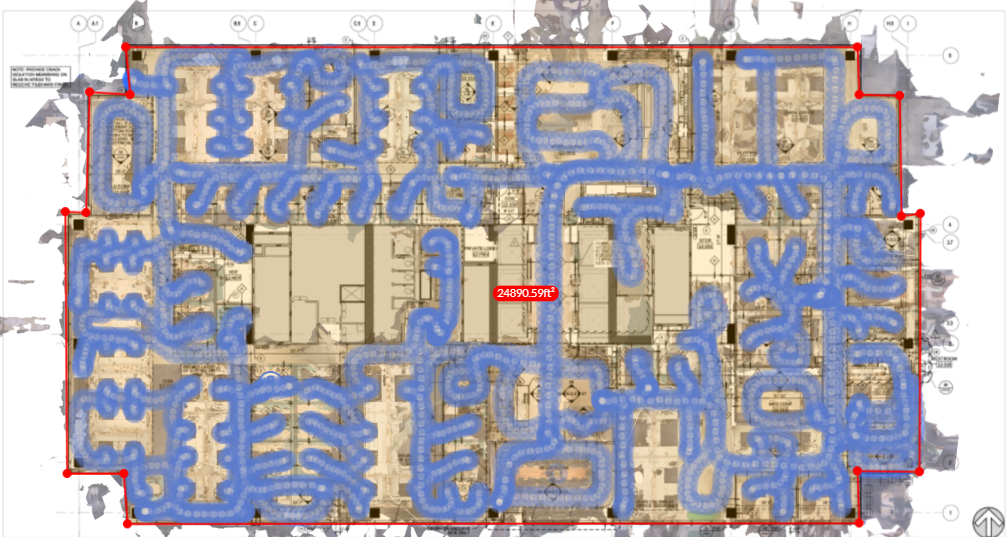

Finished Office Building Use Case: As-Built Reality Method: 360 Hyperlapse Area: 25,000 sq. ft. # of Captures: 2 Capture Time: 53 min. Images: 3,238 Average Capture Rate: 471 ft2/min

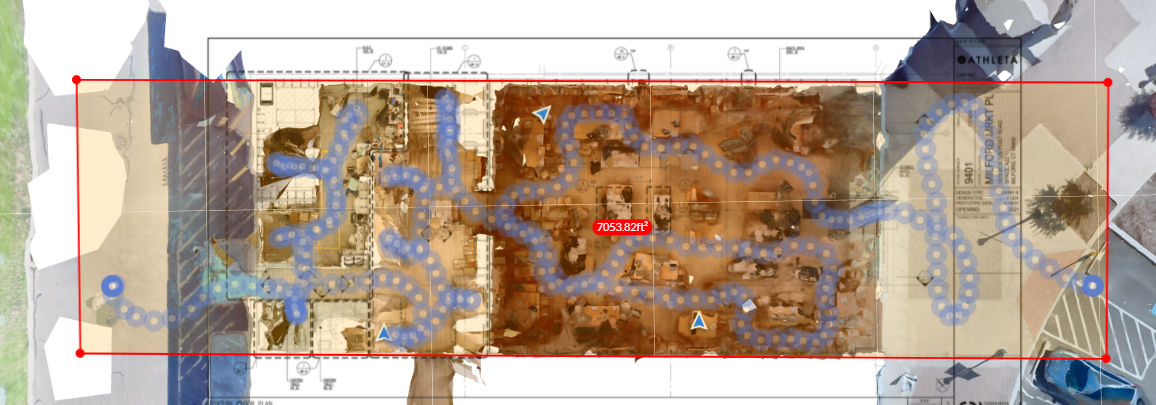

Retail Space  Use Case: Progress Monitoring Method: 360 Hyperlapse Area: 4,500 sq. ft. # of Captures: 1 Capture Time: 5 min. Images: 301 Average Capture Rate: 900 ft2/min
Retail Space  Use Case: Final As-Built, Quality Control Method: 360 Hyperlapse Area: 4,500 sq. ft. # of Captures: 1 Capture Time: 12 min. Images: 729 Average Capture Rate: 375 ft2/min

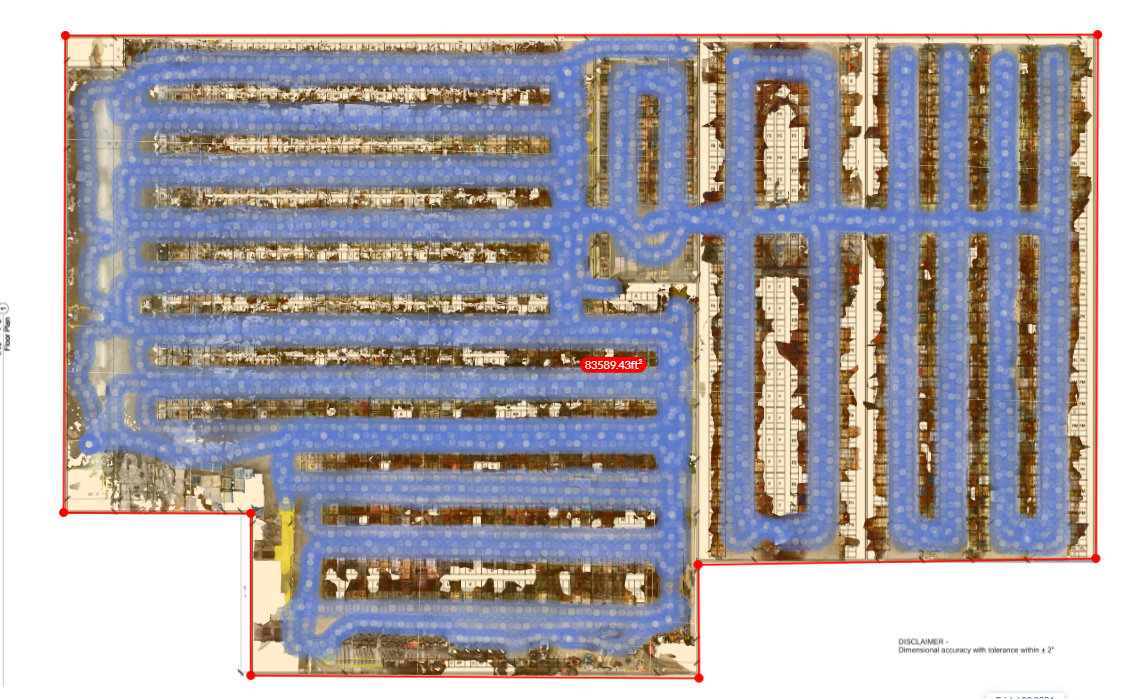

Occupied Distribution Warehouse Use Case: As-Built for Planning Method: 360 Hyperlapse Area: 84,500 sq. ft. # of Captures: 5 Capture Time: 68 min. Images: 4,096 Average Capture Rate: 1,235 ft2/min

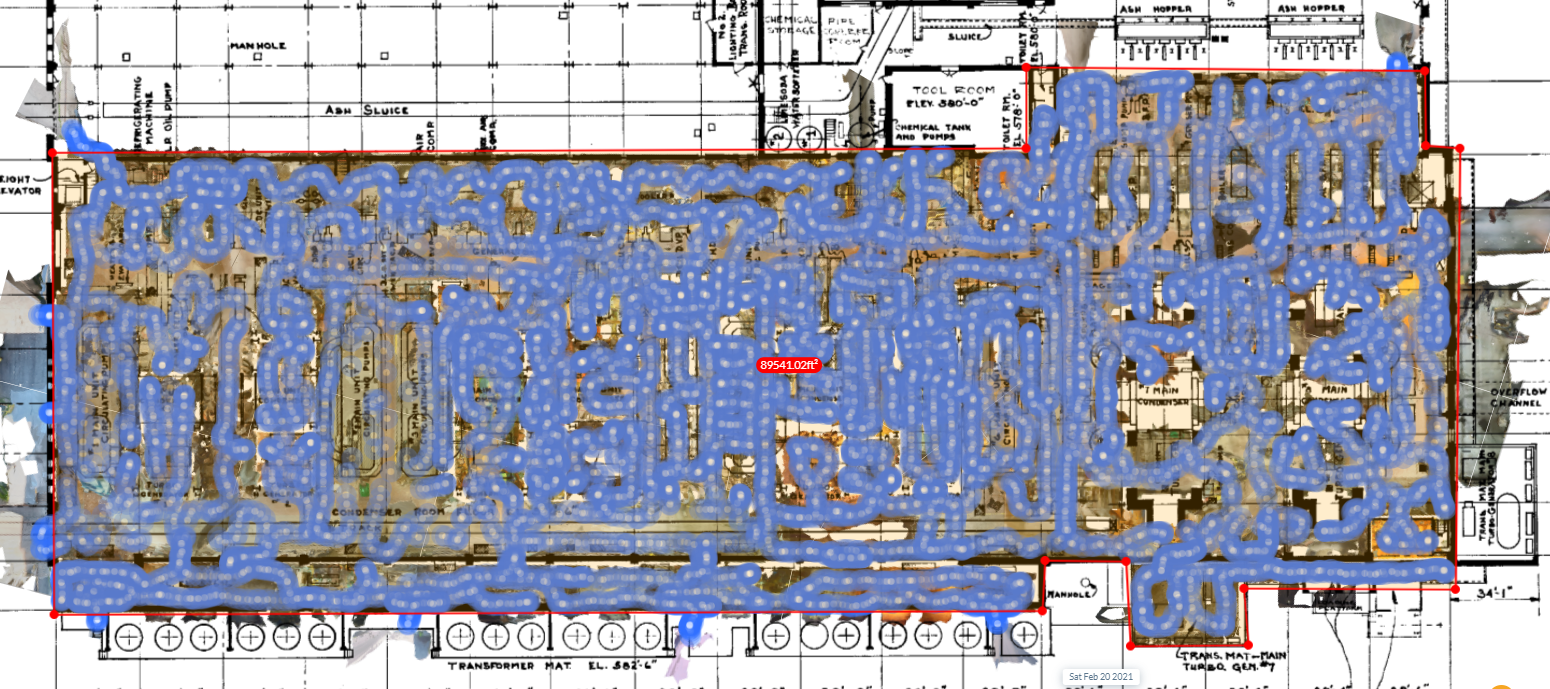

Power Plant Generator Floor Use Case: As-Built for Planning Demolition and Historical Archive  Method: 360 Full Video Area: 89,500 sq. ft. # of Captures: 5 Capture Time: 145 min. Images: 10,368 Average Capture Rate: 617 ft2/min
Occupied Office Use Case: As-Built for Scan to BIM  Method: 360 Hyperlapse Area: 65,000 sq. ft. # of Captures: 6 Capture Time: 144 min. Images: 9,273 Average Capture Rate: 777 ft2/min

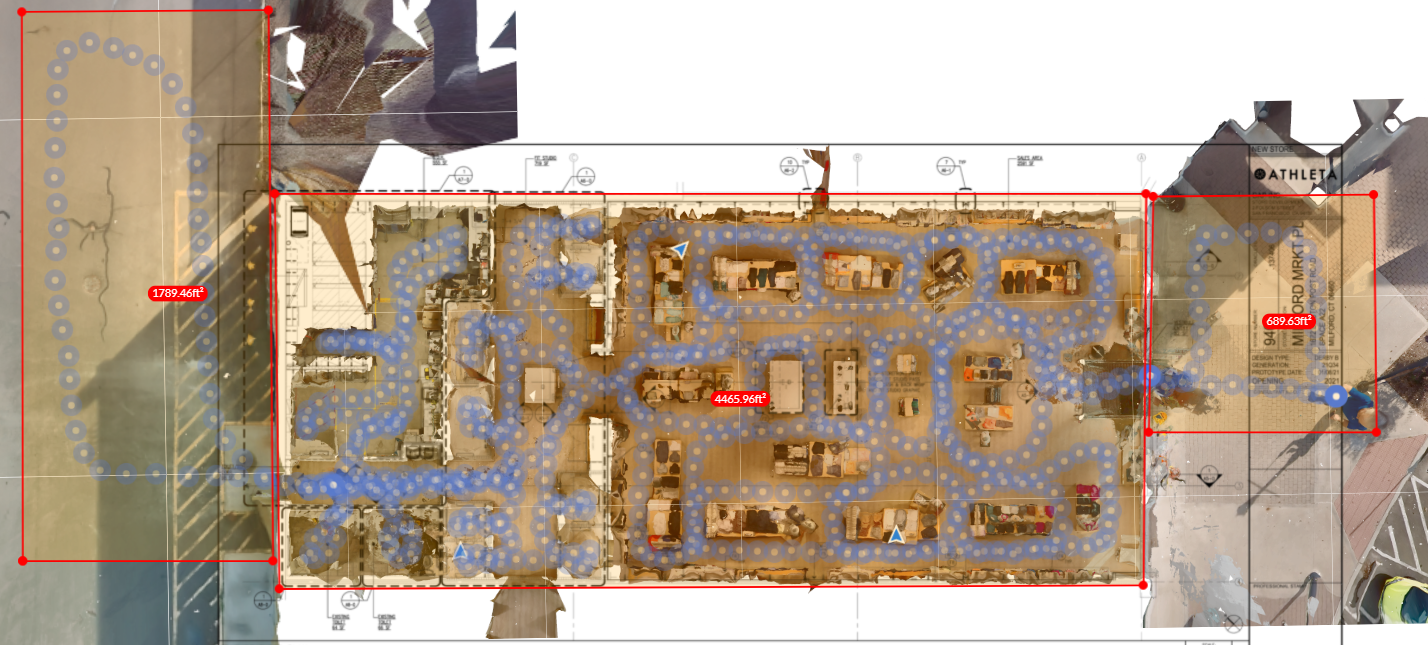

Convenience Store (Indoor) Use Case: As-Built for Planning and Progress Monitoring  Method: 360 Hyperlapse Area: 2,350 sq. ft. # of Captures: 1 Capture Time: 7.2 min. Images: 432 Average Capture Rate: 326 ft2/min
Gas Station (Outdoor) Use Case: As-Built for Planning and Progress Monitoring   Method: 360 Hyperlapse Area: 45,000 sq. ft. # of Captures: 1 Capture Time: 18.5 min. Images: 1,109 Average Capture Rate: 777 ft2/min

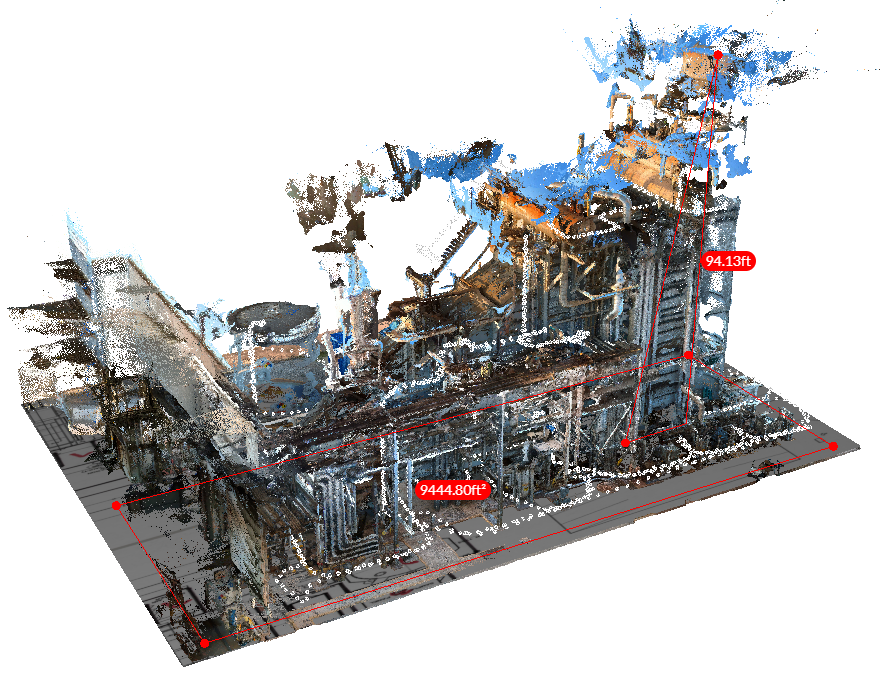

Power Plant (Outdoor) Use Case: Inspection   Method: 360 Hyperlapse Area: 9,500 sq. ft. x 95 ft. height # of Captures: 1 Capture Time: 37 min. Images: 2,210 Average Capture Rate: 777 ft2/min

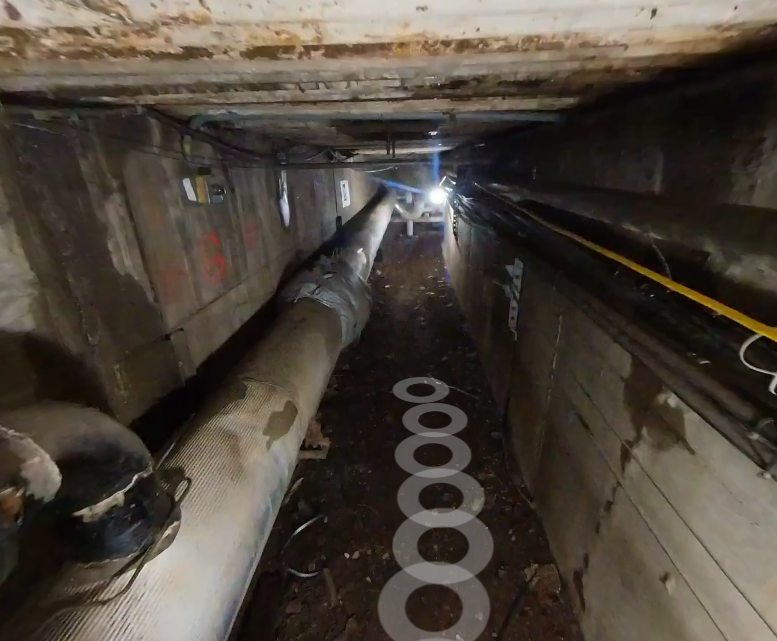

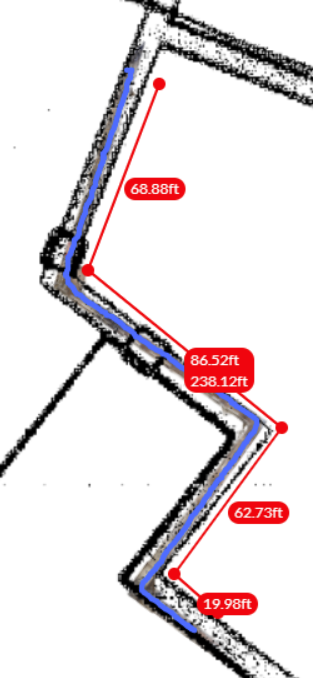

MEP Subterranean Tunnels Use Case: As-Built Inspection   Method: 360 Hyperlapse Length: 240 ft. (5 ft. width) # of Captures: 1 Capture Time: 3.5 min. Images: 206 Average Capture Rate: 342 ft/min
